MEC-ECO – 1×3 Narrow Press to Exit Switch – MEC-PBT01
AED 59.06 VAT included

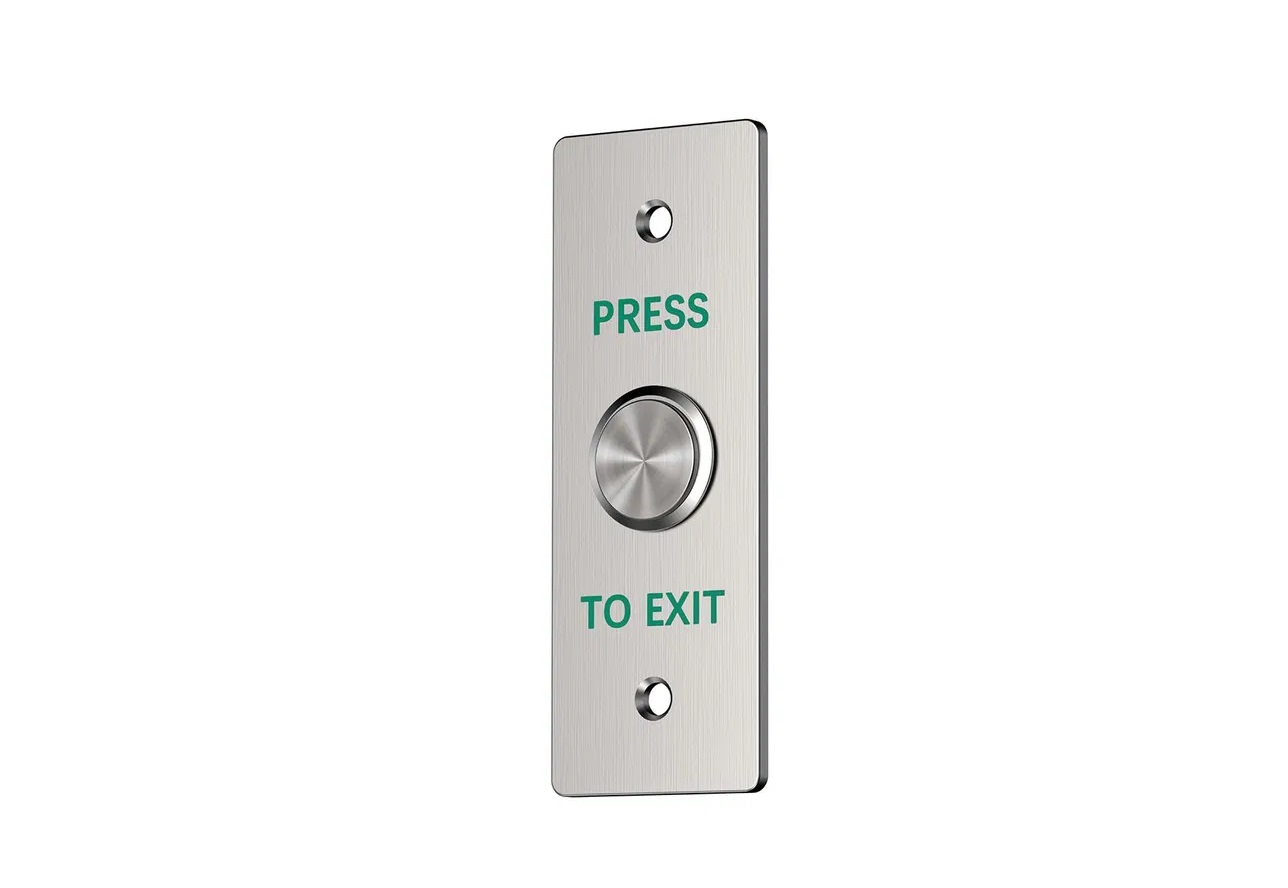

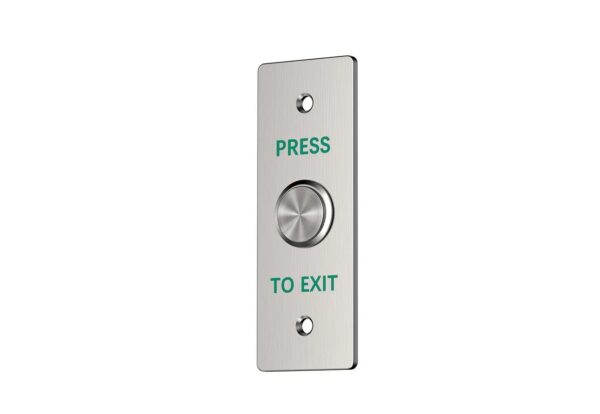

MEC-ECO – 1×3 Narrow Press to Exit Switch – MEC-PBT01DP/PTE
Product Code : SS153867
Brand: MEC-ECO
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
MEC-ECO 1×3 Narrow Press to Exit Switch (MEC-PBT01) is a reliable and durable exit control solution designed for use in various security and access control systems. With a slim design, it is ideal for installation in confined spaces and on narrow door frames. The switch is labeled “Press to Exit,” making it user-friendly for environments where controlled access is essential, such as offices, hospitals, and industrial settings.
Features
- Weather-Resistant: Suitable for indoor and outdoor use, providing reliable performance in various conditions
- Easy Installation: Designed for quick and simple installation on doors, gates, or other access points
- User-Friendly: Clearly labeled "Press to Exit" for ease of use in access control environments
- Compact Design: Narrow 1x3 size makes it suitable for tight spaces and slim door frames
- Stainless Steel Plate: Offers a sleek, professional appearance and corrosion resistance
- High Durability: Built to withstand frequent usage in high-traffic areas
Specifications
- Dimensions: 85mm x 25mm (Narrow plate)
- Material: Stainless steel
- Button Type: Push-to-exit
- Operation: Normally open (NO) or normally closed (NC)
- Power Rating: 12-24V DC
- Current Rating: 3A at 125V AC
- Mounting Type: Surface-mounted
- Ingress Protection: IP55 (weather-resistant)
