Hoyles S1728S Open – Close buttons with door status LEDs
See all products from hoylesAED 973.35 VAT included

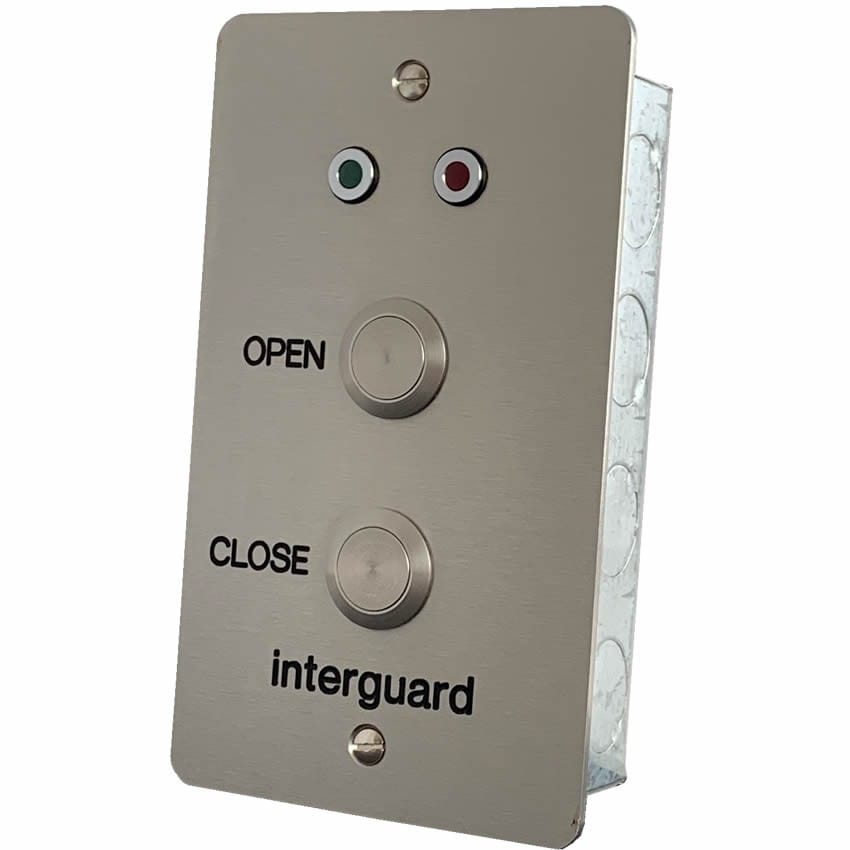

Hoyles S1728S Open – Close buttons with door status LEDs. Two stainless steel vandal resistant push buttons together with one red and one green LED on a double gang stainless steel plate engraved with ‘Open’ and ‘Close’. Specifically designed for use with our range of Interguard door interlock controllers when interlocking of roller shutters, powered doors or gates is required.
The LED current limit resistor is provided for 12 vdc operation.
Product Code : SS11032
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1728S Open – Close buttons with door status LEDs. Two stainless steel vandal resistant push buttons together with one red and one green LED on a double gang stainless steel plate engraved with ‘Open’ and ‘Close’. Specifically designed for use with our range of Interguard door interlock controllers when interlocking of roller shutters, powered doors or gates is required.
The LED current limit resistor is provided for 12 vdc operation.Specification
Led Current – 20mA per LED@12vdc
Sounder Current – N/A
Switch Contacts – SPCO 2A 30vdc
Visual Indication – 2 x LEDs one red one green
Integral Sounder Level – N/A
Tamper – N/A
Material – 304 Grade Stainless Steel
Dimensions -145mm x 86mm x 2mm – Facia
38mm galvanised double gang back box supplied
Weight – 0.50kg
Approvals – CE and RoHs compliant
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
