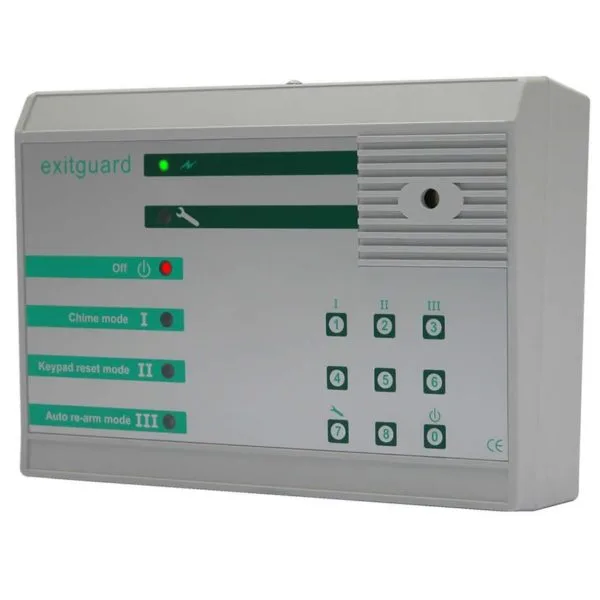

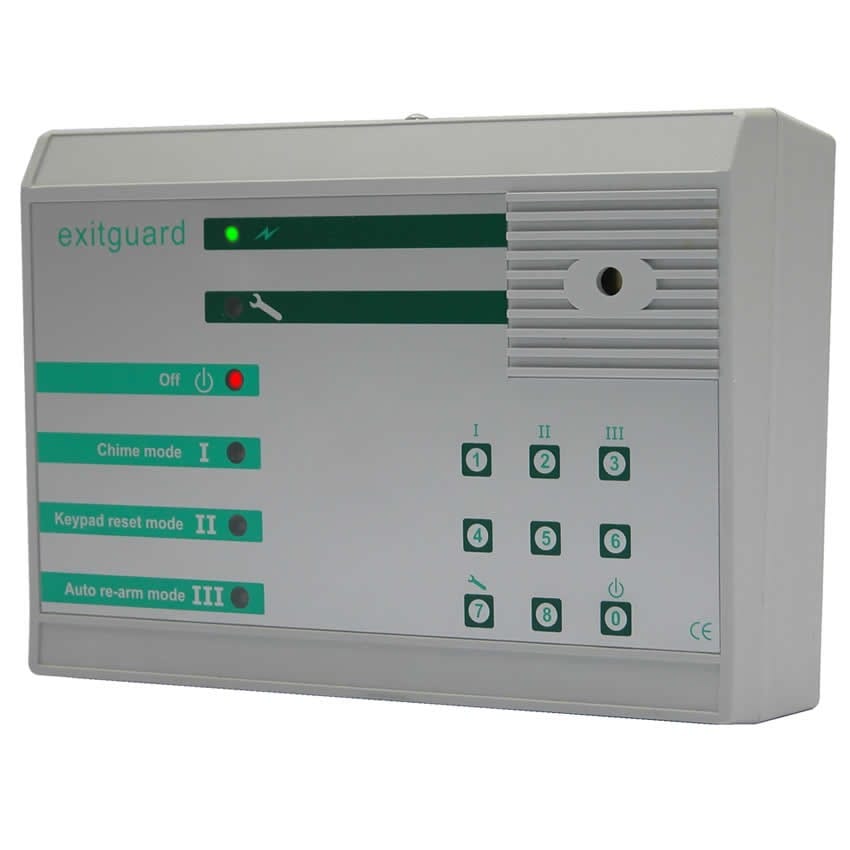

Hoyles EX206 Mains Powered EXITGUARD with integral keypad control

Hoyles EX206 Mains Powered EXITGUARD with integral keypad control .Exitguard door alarm with integral Keypad control. Exitguard is the ideal solution for security of fire exit doors. An integral high power sounder is activated when the door is opened to warn those in the vicinity that security has been breached.Keypad Control
Unique Fire Door Checker
175 x 125 x 60 tapering to 50mm
High Power Piezo Sounder more than 108db
Manager codes to restrict users
Auto Re-arm & Reset Delay (variable)
Optional Door Open Too Long Delay 0-88min 58secs
Quick Reset/Pass and return facility
Visual Strobing Alarm IndicationFront & Back Acting Tamper Switch
Bleep In Off Option
Chime Facility
Six Selectable Alarm Tones
Where applicable batteries are supplied
Door contact suppliedEX204 is battery powered – Use where a separate supply of power is not available and the protected door is opened infrequently. Depending on usage the 6 x AA batteries supplied can last up to 3 years. The Exitguard will continue to function for at least two weeks after a battery fault indication.

EX206 is 12vdc powered – Use where the protected door may be opened frequently or the integral sounder may need to sound for long periods. There is a logic output signal, volt free relay contacts for separately signalling ON/OFF status/alarm conditions at remote points and can also be used as part of a system. (Power supply available separatley)
This version cannot be powered from batteries.

EX206 is 240vac mains powered – Use where the protected door may be opened frequently or the sounder may need to sound for long periods. There is a logic output signal, a volt free relay contact for alarm condition. This version is also supplied with 6 x AA alkaline batteries for standby. The batteries will not power the alarm relay.

Select your required option from the drop down above.

Exitguard 200 Series Model Comparison

Code
EX204
EX205
EX206

Battery Monitor
Yes
No
Yes

On/Off Monitoring Relay
No
SPCO 1A 30vdc
No

Supply Voltage
Battery or 7v -14vdc
12vdc -14vdc
220/240vac

Supply Current
35?A quiescent 80mA max
45mA quiescent 155mA max
< 0.5A

Batteries(supplied)
6 x AA alkaline
No
6 x AA alkaline

108db Sounder
Yes
Yes
Yes

Alarm Relay Contacts
No
SPCO 1A 30vdc
SPCO 1A 30vdc

Auxiliary Power O/P
No
No
200mA @12vdc
