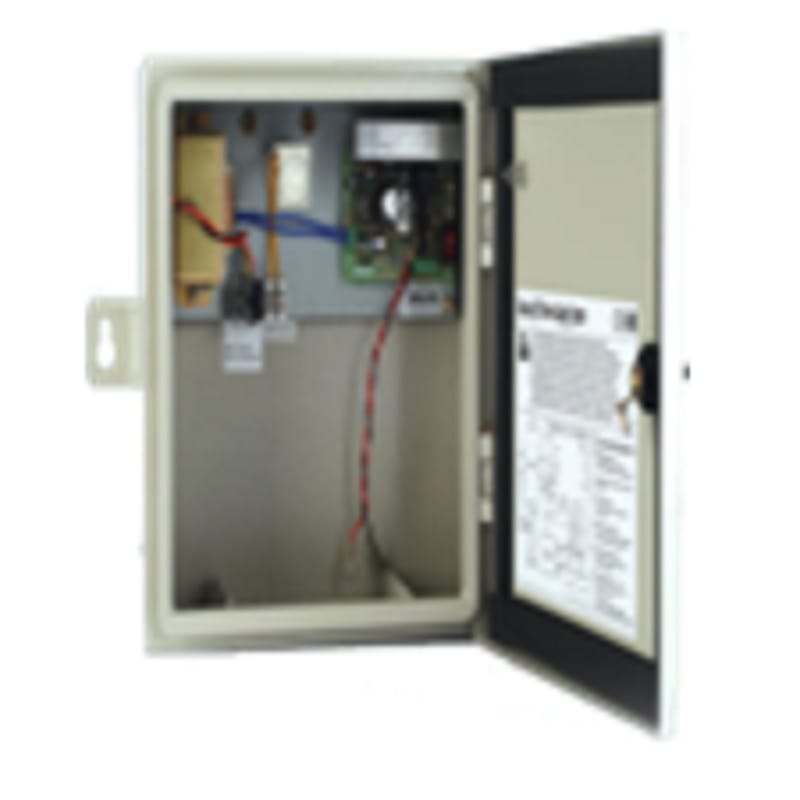

Back-up DC Power Supply c/w Weatherproof Casing, Battery Charger circuit ( Input : 230Vac, Output : 12Vdc 3A )
See all products from elockAED 412.13 VAT included
EL-PW-300 Back-up DC Power Supply offers consistent & reliable regulated full 3 Amps 12 Vdc output. Built in with Battery charger circuit that enables user to have battery backup features with battery.
Product Code : SS10349
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
EL-PW-300 Back-up DC Power Supply offers consistent & reliable regulated full 3 Amps 12 Vdc output. Built in with Battery charger circuit that enables user to have battery backup features with battery.
Features
- Over load protection.
- Built-in backup battery charger.
- Battery low cut-off
- Output voltage adjustment.
- Weatherproof Casing design ( IP55 )
- Safety Approval : CE
Specifications
- Dimension : 300 mm W x 300 mm H x 145 mm D
- Input frequency : 50 Hz
- Output no load voltage : 13.5 Vdc
- Output rated voltage : 13.0 Vdc
- Output rated current : 3.0 Adc
- Load regulation : NL to FL3%
- Battery low cut-off : 10.5 Vdc
- Operating temperature : 0~65 deg C
- Casing Surface finishing : Oven baked Epoxy Powder coating
- IP protection rating : IP55
