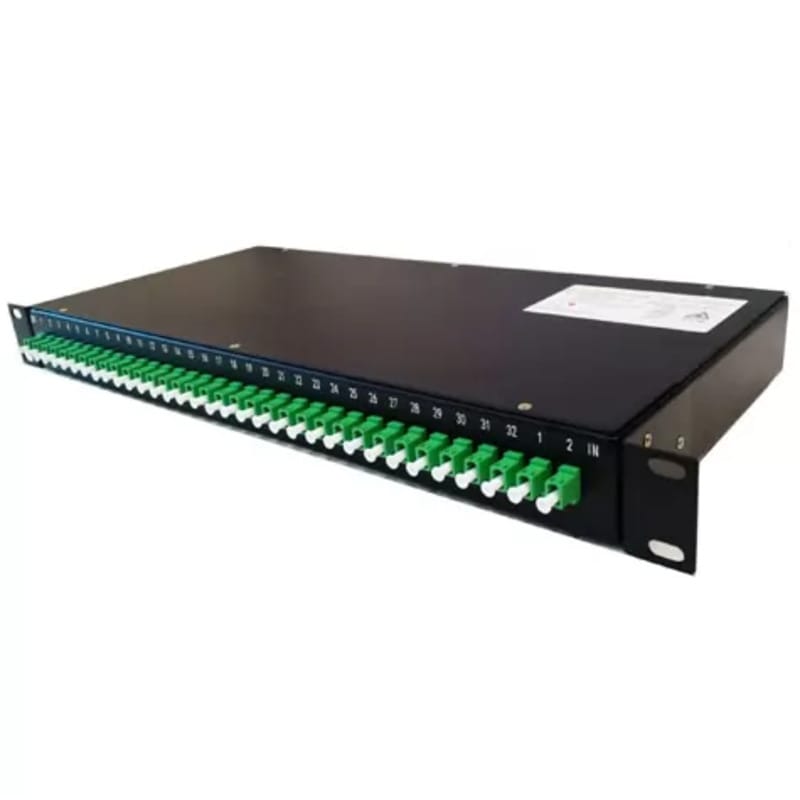

DME Prolink – Fiber Optic Splitter Panel 19? Rack Mount, LC/APC 2:32 Splitter, 1 Instance

Name: DME Prolink - Fiber Optic Splitter Panel 19? Rack Mount, LC/APC 2:32 Splitter, 1 Instance
SKU: SS14640
Price: 1445.71 AED
Availability: OutOfStock

See all products from dme-prolink

AED 1,518.00 VAT included

Out of stock

Compare

Product Code : SS14640 Brand: DME Prolink Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

DME PROLINK?s Splitter panel is a vital component in any GPON/FTTx infrastructure. Designed in conjunction with leading Service Providers This compact, integrated panel offers pre-connectorised presentation of the input and output ports on the front of the panel. Each port is clearly labeled. The splitter consist of waveguides chip, optical fiber array and Pigtails. The Fiber used in DME PROLINK?s splitter panel, is made of pure silica and germanium doped silica. A UV curable acrylate material is applied over the Fiber Cladding as primary protective coating. DME PROLINK quality personals ensures product reliability through rigorous qualification testing to assure cable performance and durability in adverse field environments. Excellent quality control is achieved through intense in-house quality check and stringent audit acceptance by ISO 9001.

Features

Installed in 19? Standard Rack
Small Size and aesthetic appearance
Quick Installation, Reliable Performance and Stable
Wide Operating wavelength range
Good uniformity with respect to PON application
Cassette Type Splitter ? 2:32
The PLC Splitter comes with pre-connectorised LC/APC connectors. The end faces are still curved but are angled at an industry standard 8?.
This maintains a tight connection, and it reduces back reflection to about -70 dB. APC type connector back reflection does not degrade with repeated mating
Outer Sheath of Pigtail is PVC
Fiber Type is G.657A1
