Arduino – Nano Board
See all products from arduinoAED 132.83 VAT included
Arduino – Nano Board
Product Code : SS149702
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

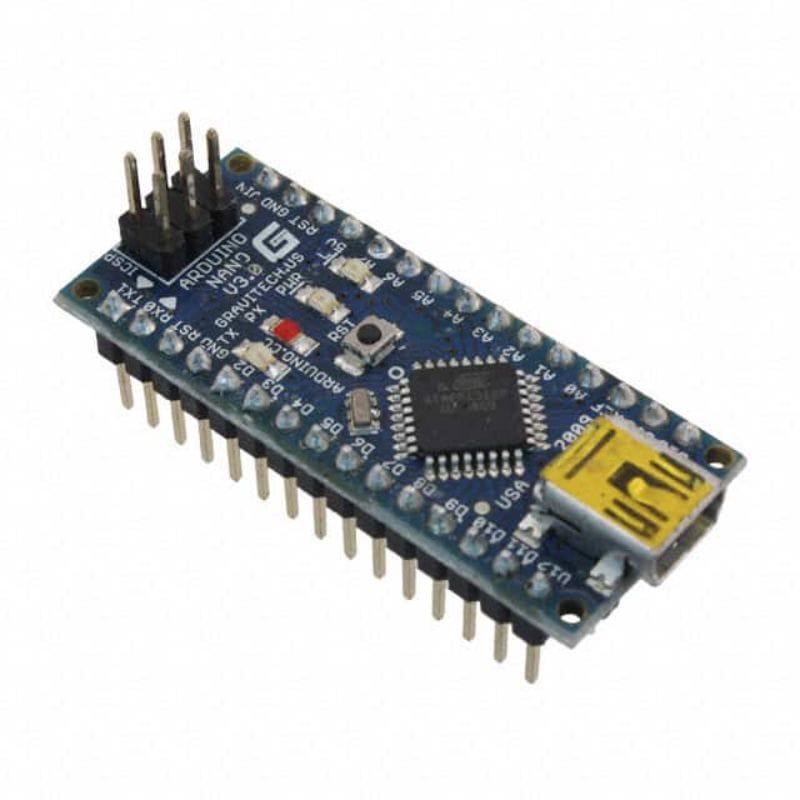

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Features
- It has more or less the same functionality of the Arduino Duemilanove, but in a different package
- It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one
Specifications
- Brand: Arduino
- Microcontroller ATmega328P
- Architecture AVR
- Operating Voltage 5 V
- Flash Memory 32 KB of which 2 KB used by bootloader
- SRAM 2 KB
- Clock Speed 16 MHz
- Analog IN Pins 8
- EEPROM 1 KB
- DC Current per I/O Pins 40 mA (I/O Pins)
- Input Voltage 7-12V
- Digital I/O Pins 22 (6 of which are PWM)
- PWM Output 6
- Power Consumption 19 mA
- PCB Size 18 x 45 mm
- Weight 7 g
